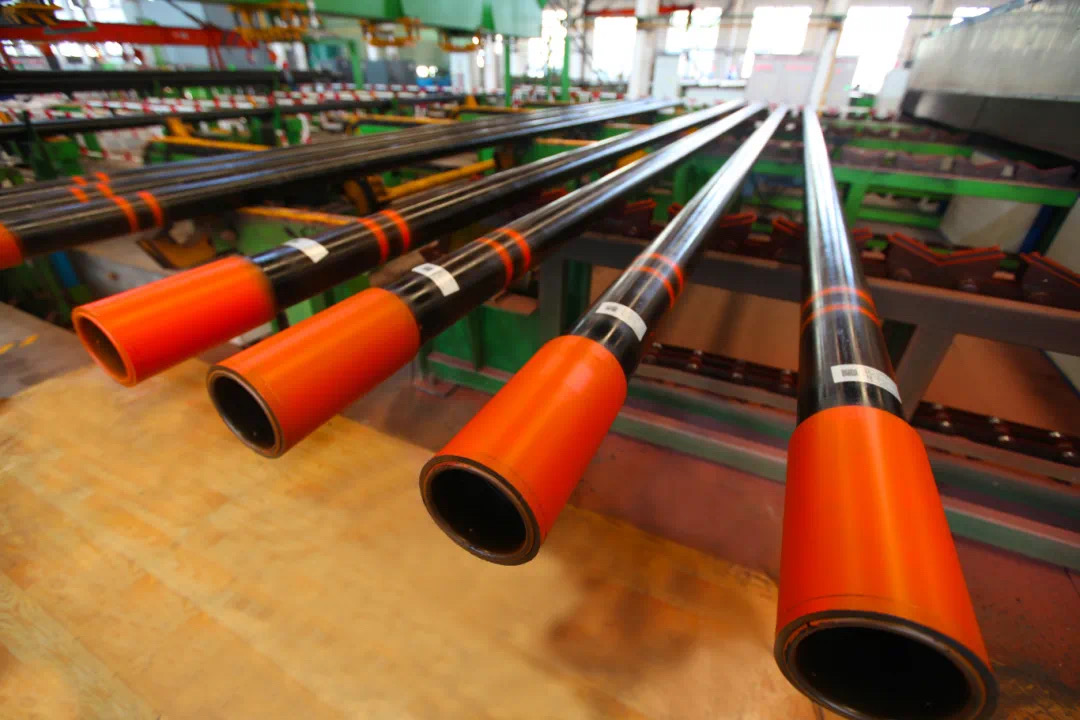

Casing Pipe

Casing Pipe

The casing pipes are forged with cutting-edge technology and top-notch materials. Engineered to withstand extreme pressures and harsh underground environments, they ensure seamless operation in oil and gas and geothermal wells. With precise dimensions and excellent corrosion resistance, the casing pipe products offer unrivaled reliability and durability. Trust our oil casing pipes to be the robust backbone of your drilling projects, delivering superior performance every single time

Size Outside diameter

D

 Nominal linear

Mass T&C

 Wall thickness

t

 Type of end-finish
In Mm In Kg/m Lb/ft Mm In H40 J55

K55

 M65 L80

C95

 N80 C90

T95

 P110 Q125 DLP

80T

 DLP

110T

 DLP

125T

 DLP

110TT

 DLP

125TT

4 1/2 114.30 4.500 14.14 9.50 5.21 0.205 S S S – – – – – – – – – –
4 1/2 114.30 4.500 15.63 10.50 5.69 0.224 – SB SB – – – – – – – – – –
4 1/2 114.30 4.500 17.26 11.60 6.35 0.250 – SLB LB LB LB LB LB – LB LB – LB –
4 1/2 114.30 4.500 20.09 13.50 7.37 0.290 – – LB LB LB LB LB – LB LB – LB –
4 1/2 114.30 4.500 22.47 15.10 8.56 0.337 – – – – – – LB LB LB LB LB LB LB
5 127.00 5.000 17.11 11.50 5.59 0.220 – S S – – – – – – – – – –
5 127.00 5.000 19.35 13.00 6.43 0.253 – SLB SLB – – – – – – – – – –
5 127.00 5.000 22.32 15.00 7.52 0.296 – SLB LB LB LB LB LB – LB LB LB LB LB
5 127.00 5.000 26.79 18.00 9.19 0.362 – – LB LB LB LB LB LB LB LB LB LB LB
5 127.00 5.000 31.85 21.40 11.10 0.437 – – LB LB LB LB LB LB LB LB – LB –
5 127.00 5.000 34.53 23.20 12.14 0.478 – – – LB LB LB LB LB LB LB LB LB LB
5 127.00 5.000 35.86 24.10 12.70 0.500 – – – LB LB LB LB LB LB LB – LB-
5 1/2 139.70 5.500 20.83 14.00 6.20 0.244 S S S – – – – – – – – – –
5 1/2 139.70 5.500 23.07 15.00 6.98 0.275 – SLB SLB – – – – – – – – – –
5 1/2 139.70 5.500 25.30 17.00 7.72 0.304 – SLB LB LB LB LB LB – LB LB – LB –
5 1/2 139.70 5.500 29.76 20.00 9.17 0.361 – – LB LB LB LB LB – LB LB LB LB LB
5 1/2 139.70 5.500 34.23 23.00 10.54 0.415 – – LB LB LB LB LB LB LB LB LB LB LB
6 5/8 168.28 6.625 29.76 20.00 7.32 0.288 S SLB SLB – – – – – – – – – –
6 5/8 168.28 6.625 35.72 24.00 8.94 0.352 – SLB LB LB LB LB LB – LB LB – LB –
6 5/8 168.28 6.625 41.67 28.00 10.59 0.417 – – LB LB LB LB LB – LB LB LB LB LB
6 5/8 168.28 6.625 47.62 32.00 12.06 0.475 – – – LB LB LB LB LB LB LB LB LB LB
7 177.80 7.000 25.30 17.00 5.87 0.231 S – – – – – – – – – – – –
7 177.80 7.000 29.76 20.00 6.91 0.272 S S S – – – – – – – – – –
7 177.80 7.000 34.23 23.00 8.05 0.317 – SLB LB LB LB LB – – LB LB – LB –
7 177.80 7.000 38.69 26.00 9.19 0.362 – SLB LB LB LB LB LB – LB LB – LB –
7 177.80 7.000 43.16 29.00 10.36 0.408 – – LB LB LB LB LB – LB LB – LB –
7 177.80 7.000 47.62 32.00 11.51 0.453 – – LB LB LB LB LB – LB LB – LB –
7 177.80 7.000 52.09 35.00 12.65 0.498 – – – LB LB LB LB LB LB LB LB LB LB
7 177.80 7.000 56.55 38.00 13.72 0.540 – – – LB LB LB LB LB LB LB LB LB LB
7 5/8 193.68 7.625 35.72 24.00 7.62 0.300 S – – – – – – – – – – – –
7 5/8 193.68 7.625 39.29 26.40 8.33 0.328 – SLB SLB LB LB – – – LB LB – LB –
7 5/8 193.68 7.625 44.20 29.70 9.520 0.375 – LB LB LB LB LB LB – LB LB – LB –
7 5/8 193.68 7.625 50.15 33.70 10.92 0.430 – LB LB LB LB LB LB – LB LB LB LB LB
7 5/8 193.68 7.625 58.04 39.00 12.70 0.500 – – – LB LB LB LB LB LB LB LB LB LB
7 5/8 193.68 7.625 63.69 42.80 14.27 0.562 – – – LB LB LB LB LB LB LB – LB –
7 5/8 193.68 7.625 67.41 45.30 15.11 0.595 – – – LB LB LB LB LB LB LB LB LB LB
7 5/8 193.68 7.625 70.09 47.10 15.88 0.625 – – – LB LB LB LB LB LB LB – LB –
8 5/8 219.08 8.625 35.72 24.00 6.71 0.264 – S S – – – – – – – – – –
8 5/8 219.08 8.625 41.67 28.00 7.72 0.304 S – S – – – – – – – – – –
8 5/8 219.08 8.625 47.62 32.00 8.94 0.352 S SLB SLB – – – – – – – – – –
8 5/8 219.08 8.625 53.57 36.00 10.16 0.400 – SLB SLB LB LB – – – LB LB – LB –
8 5/8 219.08 8.625 59.53 40.00 11.43 0.450 – – LB LB LB LB LB – LB LB – LB –
8 5/8 219.08 8.625 65.48 44.00 12.70 0.500 – – – LB LB LB LB – LB LB LB LB LB
8 5/8 219.08 8.625 72.92 49.00 14.15 0.557 – – – LB LB LB LB LB LB LB LB LB LB
9 5/8 244.48 9.625 48.07 32.30 7.92 0.312 S – – – – – – – – – – – –
9 5/8 244.48 9.625 53.57 36.00 8.94 0.352 S SLB SLB – – – – – – – – – –
9 5/8 244.48 9.625 59.53 40.00 10.03 0.435 – SLB SLB LB LB – – – LB LB – LB LB
9 5/8 244.48 9.625 64.73 43.50 11.05 0.435 – – LB LB LB LB LB – LB LB LB LB LB
9 5/8 244.48 9.625 69.64 47.00 11.99 0.472 – – LB LB LB LB LB LB LB LB LB LB LB
9 5/8 244.48 9.625 79.62 53.50 13.84 0.545 – – – LB LB LB LB LB LB LB LB LB LB
9 5/8 244.48 9.625 86.91 58.40 15.11 0595 – – – LB LB LB LB LB LB LB LB LB LB
10 3/4 273.05 10.750 48.73 32.75 7.09 0.279 S – – – – – – – – – – – –
10 3/4 273.05 10.750 60.27 40.50 8.89 0.350 S SB SB – – – – – – – – – –
10 3/4 273.05 10.750 67.71 45.50 10.16 0.400 – SB SB – – – – – – – – –
10 3/4 273.05 10.750 75.90 51.00 11.43 0.450 – SB SB SB SB SB SB – – – – – –
10 3/4 273.05 10.750 82.59 55.50 12.57 0.495 – – SB SB SB SB SB – – – – – –
10 3/4 273.05 10.750 90.33 60.70 13.84 0.545 – – – – SB SB SB SB – – – – –
10 3/4 273.05 10.750 97.77 65.70 15.11 0.595 – – – – SB SB SB SB – – – –
11 3/4 298.45 11.750 62.50 4200 8.46 0.333 S – – – – – – – – – – – –
11 3/4 298.45 11.750 69.94 47.00 9.53 0.375 – SB SB – – – – – – – – – –
11 3/4 298.45 11.750 80.36 54.00 11.05 0.435 – SB SB – – – – – – – – – –
11 3/4 298.45 11.750 98.29 60.00 12.42 0.489 – SB SB SB SB SB SB SB – – – – –
13 3/8 339.72 13.375 71.43 48.00 8.38 0.330 S – – – – – – – – – – – –
13 3/8 339.72 13.375 81.10 54.50 9.65 0.380 – SB SB – – – – – – – – – –
13 3/8 339.72 13.375 90.78 61.00 10.92 0.430 – SB SB – – – – – – – – – –
13 3/8 339.72 13.375 101.19 68.00 12.19 0.480 – SB SB SB SB SB SB – – – – – –
13 3/8 339.72 13.375 107.15 72.00 13.06 0.514 – – – SB SB SB SB SB – – – – –
16 406.40 16.000 93.67 65.00 9.53 0.375 S – – – – – – – – – – – –
16 406.40 16.000 111.61 75.00 11.13 0.438 – SB SB – – – – – – – – – –
16 406.40 16.000 125.01 84.00 12.57 0.495 – SB SB – – – – – – – – – –
18 5/8 473.08 18.625 130.21 87.50 11.05 0.435 S SB SB – – – – – – – – – –
20 508.00 20.000 139.89 94.00 11.13 0.438 SL SLB SLB – – – – – – – – – –
20 508.00 20.000 158.49 106.50 12.70 0.500 – SLB SLB – – – – – – – – – –
20 508.00 20.000 197.93 133.00 16.13 0.635 – SLB – – – – – – – – – – –
22 558.80 22.000 212.61 15.88 0.625
22 558.80 22.000 233.34 17.48 0.688
22 558.80 22.000 253.56 19.05 0.750
24 609.60 24.000 232.50 15.88 0.625
24 609.60 24.000 255.24 17.48 0.688
24 609.60 24.000 229.70 19.05 0.750
28 711.20 28.000 272.29 15.88 0.625
28 711.20 28.000 299.03 17.48 0.688
28 711.20 28.000 352.15 19.05 0.750
30 762.00 30.000 292.18 15.88 0.625
30 762.00 30.000 320.93 17.48 0.688
30 762.00 30.000 349.02 19.05 0.750
